6) Shellcode Primer

ObjectiveWalk-through

Obj

Details

Location: FrostFest/Jack's Office
Elf: Ruby Cyster
Objective Link 1: Link

Obj

Troll's Objective Message

Hey, I'm Ruby Cyster. Don't listen to anything my sister, Ingreta, says about me.

So I'm looking at this system, and it has me a little bit worried. If I didn't know better, I'd say someone here is learning how to hack North Pole systems. Who's got that kind of nerve! Anyway, I hear some elf on the other roof knows a bit about this type of thing. Oh man - what is this all about? Great work though. So first things first, you should definitely take a look at the firmware. With that in-hand, you can pick it apart and see what's there. Did you know that if you append multiple files of that type, the last one is processed? Have you heard of Hash Extension Attacks? If something isn't working, be sure to check the output! The error messages are very verbose. Everything else accomplished, you just might be able to get shell access to that dusty old thing!

The terminal challenge for this objective is the "Holiday Hero" terminal offered by Chimney Scissorsticks. Solving this terminal challenge provides additional hints for this objective. To view the hints use the menu on the left.

To start this objective click on the "Shellcode Primer" next to Ruby Cryster. There are 11 modules for this challenge. Follow the instructions and hints if you need to figure out each module.

The code for each module is displayed below:

1234567891011

    ; Set up some registers (sorta like variables) with values
    ; In the debugger, look how these change!
    mov rax, 0
    mov rbx, 1
    mov rcx, 2
    mov rdx, 3
    mov rsi, 4
    mov rdi, 5
    mov rbp, 6

    ; Push and pop - watch how the stack changes!
    push 0x12345678
    pop rax

    push 0x1111
    push 0x2222
    push 0x3333
    pop rax
    pop rax
    pop rax

    ; This creates a string and references it in rax - watch the debugger!
    call getstring
      db "Hello World!",0
    getstring:
    pop rax

    ; Finally, return 0x1337
    mov rax, 0x1337
    ret

    ; We want to loop 5 times - you can change this if you want!
    mov rax, 5

    ; Top of the loop
    top:
    ; Decrement rax
    dec rax

    ; Jump back to the top until rax is zero
    jnz top

    ; Cleanly return after the loop
    ret

ret

    ; TODO: Set rax to 1337
    mov rax, 1337
    ; Return, just like we did last time
    ret

    ; TODO: Find the syscall number for sys_exit and put it in rax
    mov rax, 60

    ; TODO: Put the exit_code we want (99) in rdi
    mov rdi, 99

    ; Perform the actual syscall
    syscall

    ; Push this value to the stack
    push 0x12345678

    ; Try to return
    ret

    ; Remember, this call pushes the return address to the stack
    call place_below_the_nop

    ; This is where the function *thinks* it is supposed to return
    nop

    ; This is a 'label' - as far as the call knows, this is the start of a function
    place_below_the_nop:

    ; TODO: Pop the top of the stack into rax
    pop rax

    ; Return from our code, as in previous levels
    ret

    ; This would be a good place for a call
    call place_below_hello_world

    ; This is the literal string 'Hello World', null terminated, as code. Except
    ; it'll crash if it actually tries to run, so we'd better jump over it!
    db 'Hello World',0

    ; This would be a good place for a label and a pop
    place_below_hello_world:
    pop rax

    ; This would be a good place for a re... oh wait, it's already here. Hooray!
    Ret

    ; TODO: Get a reference to this string into the correct register
    call getstring
    db "Hello World!",0
    getstring:
    pop rbx

    ; Set up a call to sys_write
    ; TODO: Set rax to the correct syscall number for sys_write
    mov rax, 0x1

    ; TODO: Set rdi to the first argument (the file descriptor, 1)
    mov rdi, 0x1

    ; TODO: Set rsi to the second argument (buf - this is the "Hello World" string)
    mov rsi, rbx

    ; TODO: Set rdx to the third argument (length of the string, in bytes)
    mov     rdx, 0xC            ; put length in rdx

    ; Perform the syscall
    syscall

    ; Return cleanly
    ret

    ; TODO: Get a reference to this string into the correct register
    call getstring
    db '/etc/passwd',0

    getstring:
    pop rbx

    ; Set up a call to sys_open
    ; TODO: Set rax to the correct syscall number
    mov rax, 0x2

    ; TODO: Set rdi to the first argument (the filename)
    mov rdi, rbx

    ; TODO: Set rsi to the second argument (flags - 0 is fine)
    mov rsi, 0

    ; TODO: Set rdx to the third argument (mode - 0 is also fine)
    mov rdx, 0

    ; Perform the syscall
    syscall

    ; syscall sets rax to the file handle, so to return the file handle we don't
    ; need to do anything else!
    ret

    ; TODO: Get a reference to this
    call bottom
    db '/var/northpolesecrets.txt',0
    bottom:

    ; TODO: Call sys_open
    mov rax, 2 ; syscall (sys_open)
    pop rdi ; filename
    mov rsi, 0
    mov rdx, 0
    syscall

    ; TODO: Call sys_read on the file handle and read it into rsp
    mov rdi, rax ; handle
    mov rax, 0 ; syscall (sys_read)
    mov rsi, rsp ; buffer
    mov rdx, 138 ; length
    syscall

    ; TODO: Call sys_write to write the contents from rsp to stdout (1)
    mov rdx, rax ; length
    mov rax, 1 ; syscall (sys_read)
    mov rdi, 1 ; handle (stdout)
    mov rsi, rsp ; buffer
    syscall

    ; TODO: Call sys_exit
    mov rax, 60
    mov rdi, 0
    syscall

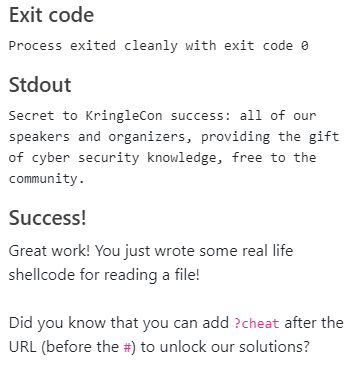

The last challenge will print out the content of the file /var/northpolesecrets.txt. You get the following output from running the challenge:

Obj

Answer

cyber security knowledge
